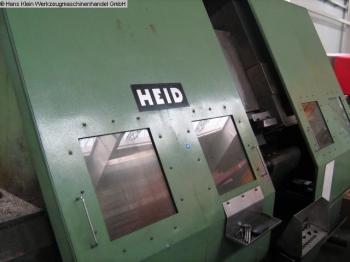

| Stockcode | : | 670418 |
| Type | : | CNC Lathes |
| Subtype | : | Inclined Bed Type |
| Manufacturer | : | HEID |
| Model | : | SDSM-NCC |
| Year | : | 1980 |
| Price | : | P.O.A. |
| Description | : | |
|
greates pass round over bed 750 mm
swing diameter over bed slide 520 mm turning length 2660 mm movement of facing slide 460 mm spindle head DIN 55022 Gr. 11 spindle bore 105 mm max. torque on the spindle max. 5000 Nm max. workpiece weight between centres 1200 kg turning speed range - stepless 11,2 - 1800 U/min spindle motor 52 kW tailstock quill diameter 125 mm tailstock quill stroke 150 mm control BOSCH CNC System 5 tailstock taper MT 6 floor space required (w/o switchgear cabinet) 7,90 x 2,10 x3,00 m weight of the machine ca. 14 t Additional Accessories Other information - with 15 pos. tool changer (chain magazin) acc.: hydr. 3-jaw chuck, hydr. steady, around 30 tool holders for chain magazin, chip conveyor, coolant | ||
