| Stockcode | : | 670419 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |

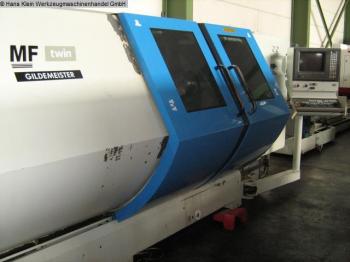

| Model | : | MF TWIN 300 |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 250 mm
turning length 1080 mm control GE FANUC Series 16 T swing diameter max. over bed cover 320 mm Distance main spindle - counter spindle max. 1400 mm spindle bore 79 mm bar material dia. 65 mm travel x1 253 mm travel z1 945 mm travel x2 198 mm travel z2 1080 mm travel y2 +/- 60 mm travel of counter spindle 1150 mm turning speed range 20 - 4000 U/min max. torque on the spindle max. 340 Nm rapid travel - longitudinal/face 24 / 20 m/min c-axis, speed 100 U/min c-axis, torque 350 Nm tool turret 2 x 12 number of driven tool stations 2 x 12 speed of driven tools max. 3400 U/min max. torque of driven tools 57 Nm 40 mmų spindle drive 25 kW total power requirement kW weight of the machine ca. 12 t dimensions 5,9 x 2,33 x 2,0 m | ||
| View all |
|
GILDEMEISTER (33) MF TWIN 300 (1) CNC Lathes (382) Turning Centres (337) |
Germany
