| Stockcode | : | 675919 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | HARDINGE |
| Model | : | CONUEST T42 LSC |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|

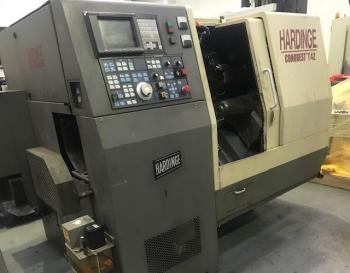

Briefly, this Fanuc controlled 1998 built Hardinge Conquest T42 LSC (Driven tools, C Axis & Sub Spindle) CNC lathe is supplied with driven tools & C-Axis, sub spindle, tailstock, parts catcher and Iemca barfeed.
Specification: 16C Collet Spindle Spindle Configuration ANSI A2-5 Hole Through Spindle 48mm, Round 16C Collet 42mm cap AC Digital Spindle Drive System (30 Minute Rating) 10 hp / 7.5 kW Speed Range50 - 5,000 rpm CARRIAGE & CROSS SLIDE Max. Swing Over Upper Way Cover 495mm Max. X-Axis Travel 140mm Max. Z-Axis Travel 350mm Max. X-Axis Traverse Rate 12 m/min Max. Z-Axis Traverse Rate 16 m/min Max. Distance from Spindle Face to Turret Face 355mm Live Tooling Holders (Speed Range) 4,000 rpm SUB-SPINDLE Spindle Configuration ANSI A2-5" Hole Through Spindle 48mm Max. Travel 292mm Rapid Traverse and Return Rate 7.6 m/min Max. Square Shank Tool Size on Vertical Turret 20mm Max. Round Shank Tool Size on Vertical Turret 20mm AC Analog Drive System (Power Rating) 1.23 kW MACHINE MEASUREMENTS Length 2362mm Length with End Chip Removal System 3141mm Depth 1778mm Height 1727mm Weight 4445 kg | ||
