| Stockcode | : | 675987 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | HAAS |
| Model | : | ST10 |
| Year | : | 2014 |
| Price | : | P.O.A. |
| Description | : | |
|

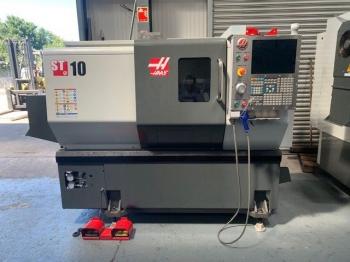

An immaculate 2014 Haas ST10 2 axis CNC Lathe with VDI Turret, Tool setter and Tailstock.
Specification: SWING DIAMETER 419 mm Max Part Diameter 419 mm Chuck Size 165 mm Max Cutting Diameter 356 mm Max Cutting Length (without workholding) 406 mm TRAVELS & FEEDRATES X Axis 200 mm Z Axis 406 mm Rapids on X 30.5 m/min Rapids on Z 30.5 m/min Max Thrust X 14679 N Max Thrust Z 14679 N SPINDLE Max Rating 11.2 kW Max Speed 6000 rpm Max Torque 102 Nm @ 1300 rpm Spindle Nose A2-5 Spindle Bore ø 58.7 mm Max Bar Capacity 44 mm TURRET Number of Tools 12 Stations VDI | ||
