| Stockcode | : | 676054 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

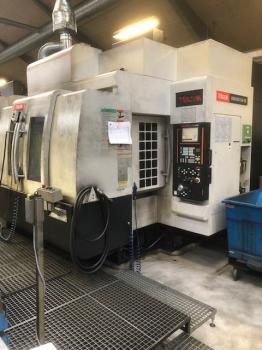

| Manufacturer | : | MAZAK |
| Model | : | VARIAX 630 - 5X - 2 P |
| Year | : | 2006 |
| Price | : | P.O.A. |
| Description | : | |
|
Control MAZATROL 640 M 5 X
Technical data: X axis: 630 mm Y axis: 765 mm Z axis : 510 mm CNC control: MAZATRO 640 M 5 X Main spindle revolutions: 12000 rpm Main spindle motor: 22/15 KW Max. torque: 172 NM Spindle cone: SK 40 Spindle diameter : 80 mm Distance between table and spindle: 230 - 740 mm NC- Round table Pallet dimension: 500 x500 mm Max. load on pallet: 500 kg Swing range A axis: + 30 / -120 degrees Indexing pallet: 0.001 degree Pallet changer for: 2 pallets Tool magazine for: 120 tools Number of controlled axes: 5 Speed: X / Y / Z axis: 50 m / min Weight: 17000 kg Space requirement: 8.0 x 5.0 x 3.6 meters Extra accessories: Chip transport CONSEP 2000 Cooling water system - with high pressure 15 bar Internal cooling through spindle Signal lamp Pallet changer Electronic handwheel Probe 5 axes A axis turntable C axis turntable 2 pcs. pallets The machine can be inspected in operation by appointment | ||
| View all |
|
MAZAK (114) VARIAX 630 - 5X - 2 P (1) CNC Machining Centres (475) Horizontal (148) |
Denmark
