| Stockcode | : | 676105 |
| Type | : | Milling |
| Subtype | : | Turret |
| Manufacturer | : | XYZ |
| Model | : | KRV 2000 |
| Year | : | 1992 |
| Price | : | £ 2,750.00 GBP |
| Description | : | |
|

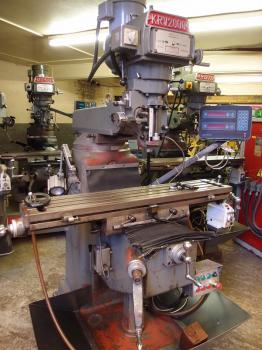

XYZ TURRET MILLING MACHINE
Model KRV 2000 Serial No 6189 Year 1992 TABLE Table size 50” x 10” 1270 x 254 mm T slots, number and width 3 x 5/8” 3 x 15.9 mm TRAVERSES Longitudinal traverse 30” 762 mm Cross traverse 16” 406 mm Vertical traverse (knee) 16” 406 mm Ram adjustment 17 ¾” 450 mm VARIABLE SPEED HEAD Spindle speeds (Inf. Variable) Low range 60 – 500 rpm High range 500 – 4200 rpm Head swivels to left and right 90 degrees Head tilts forwards and backwards 45 degrees Spindle taper R8 R8 Quill vertical travel 5” 127 mm Max. throat depth 27” 686 mm Spindle drive motor 3 HP 2.2 kW Weight 2750 lb 1250 kg Machine complete with :- Power longitudinal table feed. ACU-RITE III D.R.O. Coolant. Low volt light. | ||
| View all |
|
XYZ (30) KRV 2000 (1) Milling (338) Turret (45) |
United Kingdom
    |  |
