| Stockcode | : | 676108 |
| Type | : | Sheet Metal |
| Subtype | : | Press Brakes CNC |
| Manufacturer | : | AMADA |

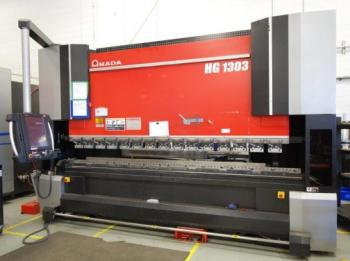

| Model | : | HG 1303 |
| Year | : | 2015 |
| Price | : | P.O.A. |
| Description | : | |
|
Specifications HG 1303
Tonnage (US) 146 tons Maximum Bend Length 122.4" Distance Between Frames 106.3" Stroke Length 9.8" Open Height (no holders) 20.5" Throat Depth 17.7" Machine Stroke 9.8" Table Height 37.4" Approach Speed 8.7" per second Bending Speed 0.79" per second Return Speed 9.8" per second Number of Cylinders 2 Hydraulic Fluid Capacity 19 gallons Machine Length 159" Machine Width 95" Machine Height 121" Machine Weight 25,355 lbs. Nominal Supply Current 60 A Provided Power 21 kVA Backgauge Range 27.5" Control Type AMNC 3i Program Capacity Unlimited via net Possible Axis Under CNC Control 11 RAM D1 & D2 Backgauge L1 & L2 Backgauge Horizontal Y1 & Y2 Backgauge Vertical Z1 & Z2 Ram Repeatability 0.00004" Backgauge Speed (L-axis) 1,181" per minute Backgauge Speed (Y-axis) 3,543" per minute Backgauge Speed (Z-axis) 787" per minute | ||
