Stockcode : 676128
Type : Lathes
Subtype : CNC Combination
Manufacturer : HARRISON
Model : ALPHA PLUS 550S X 3000MM
Year : 2000
Price : £ 22,500.00 GBP
Description :

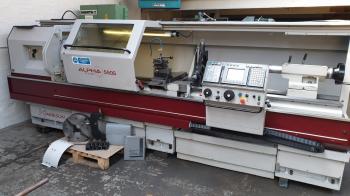

HARRISON CNC/MANUAL ‘ULTIMATE’ GAP BED CENTRE LATHE

Model ALPHA PLUS 550S x 3000mm
Control system GE/FANUC Alpha 21-iT
Serial number S50119-119
Year 2000

CAPACITY
Distance between centres 3000 mm
Swing over bed 554 mm
Swing over cross slide 370 mm
Swing in gap 830 mm

ALL THREADS
Cross & Longitudinal feeds per rev 0.03 to 0.6 mm
Metric pitches to 14 mm
Imperial threads to 2 tpi
Module pitches to 3.5 MOD
Diametrical pitches to 8 DP

HEADSTOCK
Spindle speeds (3 range) 15 - 1800 rpm
Main motor 11 kW
Spindle nose D.1-11 Camlock
Bore through spindle 104 mm

TAILSTOCK
Spindle diameter 95 mm
Spindle travel 178 mm
Taper of centre No. 6 Morse

Machine complete with :-
315mm 3-jaw chuck.
405mm 4- jaw chuck.
PARAT High accuracy 4 way indexing quick change toolpost with holders.
Three point steady and travelling steady.
Interlocked guards, Low volt lighting, Coolant, Machine manuals.
