| Stockcode | : | 676195 |
| Type | : | Sheet Metal |
| Subtype | : | Laser CNC |
| Manufacturer | : | AMADA |

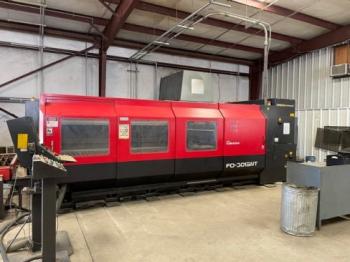

| Model | : | FO-3015NT |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|
FO 3015NT Standard Features
The FO 3015NT is designed and engineered to reliably and economically cut all types of material in a full range of thicknesses. * Maximize utilization with minimal setup between jobs * High speed processing of thin and thick materials * Operator-friendly Windows based network compatible control * X-Axis "dual drive" rack & pinion gantry for precise location at the fastest speed * High-speed pallet shuttle * Cast iron frame for superior stability * Water Assisted Cutting System (WACS TM) uses an adjustable water mist to absorb heat generated by the cutting process * 5' x 10' maximum sheet size * 3150 IPM maximum X- and Y-axis speed (4454 IPM max. at 45 degree vector) * 2362 IPM maximum Z-axis speed * 4000 watt CW laser source utilizing the latest technology to improve optic life. 1.1 Motion Package Travel Method: Stationary table, X, Y and Z-axis movement for cutting head Control Method: X, Y and Z simultaneous 3 axis control Drive Motors: Fanuc AC servo motors Maximum Sheet Size: 61" (Y) x 122.8" (X) Maximum Axis Travel: 61" (Y) x 122.8" (X) x 7.87" (Z) Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min) per axis (4,554 inches per minute 45o vector. Maximum Speed Z-Axis: 2,362 inches per minute Positioning Accuracy: 0.0004"/20" Maximum Material Weight: 1,875 lbs. Assist Gas: 4 ports with NC pressure Control Machine Footprint: 385" x 107" Machine Weight: 12 Metric Tons Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA 1.2 CNC Controller Model AMNC-F Display: LCD Color Graphics Display Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.). Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3 1/2" Floppy disk Minimum Command Unit: 0.0001" (X, Y, Z) Minimum Travel Unit: 0.0001" (X, Y, Z) Standard Memory: 2 MB Hard Drive: 10 GB Operating Modes: Automatic and Manual Display Modes: Program Contents, Position Information, Program Check, Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self Diagnostics+ Interlock Displays: Cooling Water Status, Gas Pressure Status, Vacuum Status, Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge, Door Open, WACS. Electrical requirements: See Motion Package + 1.3 Laser Specifications AF 4000C Oscillator (Resonator): CW Power: 4,000 Watts Peak pulse power: 5,000 Watts Maximum material thicknesses Carbon steel: 0.75" Stainless steel: 0.375" CleanCut (TM) Aluminum: 0.375" | ||
